Lenovo

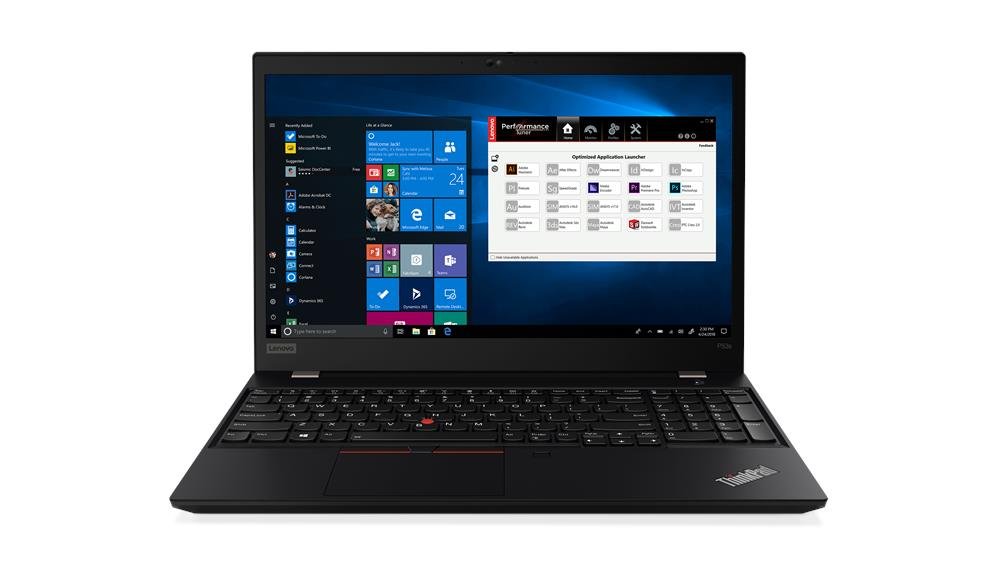

Lenovo Thinkpad P53S Core i7-8665U | Good Refurbished
Performance
Processor
Processor Family: 8th generation Intel® Core™ i5 / i7 Processor
Processor Name | Cores | Threads | Base Frequency | Max Frequency | Cache | Memory Support | Processor Graphics |
---|---|---|---|---|---|---|---|
Core i7-8665U | 4 | 8 | 1.9GHz | 4.8GHz | 8MB | DDR4-2400 | Intel UHD Graphics |
Operating System
- Windows® 10 Home 64
- Windows 10 Pro 64
- Red Hat Enterprise Linux (certified only)
- Ubuntu Linux LTS
- No operating system
Graphics
Graphics | Type | Memory | Key Features |
---|---|---|---|
NVIDIA® Quadro® P520 | Discrete | 2GB GDDR5 | DirectX® 12 |
Monitor Support
Supports up to 3 independent displays via native display and 2 external monitors:
- HDMI: up to 3840x2160@30Hz
- USB-C: up to 3840x2160@60Hz
Chipset
Intel SoC (System on Chip) platform
Memory
Type: DDR4-2400
Slots: One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory:
- Up to 48GB (16GB soldered + 32GB SO-DIMM)
- Up to 40GB (8GB soldered + 32GB SO-DIMM)
Storage
Support: One drive, up to 2TB M.2 2280 SSD
Disk Type | Interface | RPM | Security |
---|---|---|---|
M.2 2242 SSD | PCIe NVMe, PCIe 3.0 x2 | - | - |
M.2 2280 SSD | SATA 6Gb/s | - | Opal2 |
M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | - |
M.2 2280 SSD | PCIe NVMe, PCIe 3.0 x4 | - | Opal2 |
Intel Optane™ Memory + SSD | PCIe NVMe, PCIe 3.0 x4 | - | - |
Removable Storage
Optical: None
Card Reader: MicroSD card reader
Multimedia
Audio Chip: Realtek® ALC3287 codec
Speakers: Stereo speakers, 2W x2, Dolby® Audio™ Premium
Microphone: Dual array microphone, far-field / No microphone
Camera: 720p with ThinkShutter or IR & 720p with ThinkShutter or None
Battery
Battery: Integrated Li-Polymer 57Wh, supports Rapid Charge (up to 80% in 1hr)
Power Adapter
- 65W USB-C AC adapter
- 65W USB-C slim AC adapter
Design
Display
Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
---|---|---|---|---|---|---|---|---|---|---|
15.6" | FHD (1920x1080) | Multi-touch | IPS | 250 nits | Anti-glare | 16:9 | 700:1 | 45% | 170° | - |
Input Device
Keyboard: 6-row, spill-resistant, multimedia Fn keys, numeric keypad
Backlight: LED backlight
UltraNav™: TrackPoint® + Mylar® surface multi-touch touchpad
Mechanical
Dimensions: 365.8 x 248 x 19.1 mm (14.40 x 9.76 x 0.75 inches)
Weight: 1.75 kg (3.87 lbs)
Color: Black
Material: PPS / 50% GF (top), PA / 50% GF (bottom)
Connectivity
Network
- Intel Ethernet I219-V (non-vPro)
- Intel Ethernet I219-LM (vPro)
Wireless
- Intel Wireless-AC 9560, 802.11ac 2x2 + Bluetooth 5.1
- No WLAN and Bluetooth
WWAN
- 4G LTE (Fibocom L830-EB or L850-GL)
- Not Supported
SIM Card
No SIM card
NFC
Not supported
Ports
- 2x USB 3.1 Gen 1 (one Always On)
- 1x USB-C 3.1 Gen 1 (data + Power Delivery + DisplayPort)
- 1x USB-C 3.1 Gen 2 / Thunderbolt 3 (data + PD + DP)
- 1x HDMI 1.4b
- 1x microSD card reader
- 1x Ethernet (RJ-45)
- 1x 3.5mm headphone / mic combo jack
- 1x Side docking connector
- 1x Security keyhole
Optional: Smart card reader, Nano-SIM card slot (WWAN models)
![]() |
Your Device Fully functioning and ready for use out of the box! This device went through our 44-Point Check to ensure it’s in peak performance when it arrives to you. |
![]() |
Charging Cable and Wall Adapter This device comes with a compatible USB charging cable and Australian AC wall adapter. |
![]() |
Box Only selected devices come with their original boxes and manuals. If unavailable, your device will be packaged in our standard box. |
This device has undergone a 44-Point diagnostic check to ensure full
functionality.
Our 44-Point diagnostic check includes:
LCD functionality
A minimum of 80% battery health
Fully functional buttons
Fully functional Wi-Fi & 4G
Fully functional cameras
Fully functional charger port
Fully functional Touch ID
Fully functional microphone and speakers
Network unlocked
As New - These devices are in excellent condition with no signs of use
Very Good – These devices are in very good condition with minimal signs of use, minor scuffing or marking to the case or screen of device, no chips or dents.
Good - These devices are a fair condition with more significant signs of use, heavier wear and tear, widespread scuffing, marking, or chips or dents to corners of device, but no cracks to screen.
