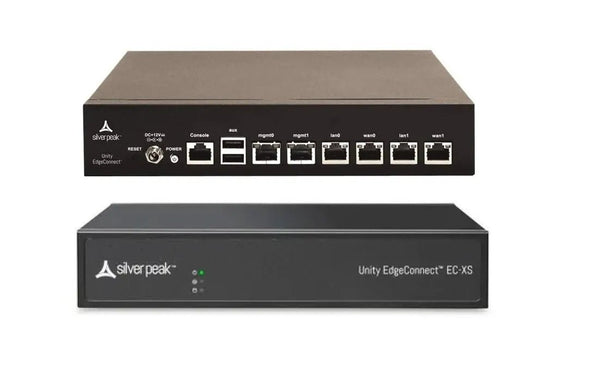

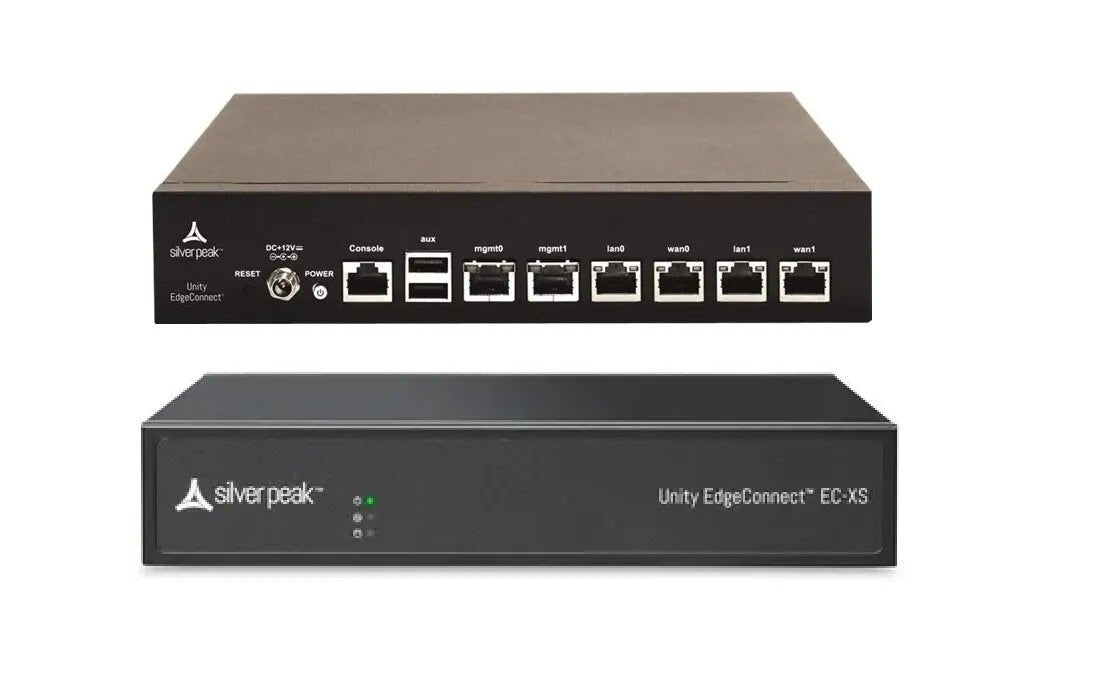

Silver Peak Unity Edge Connect XS (FW-7551A-SV1) - As New

Silver Peak

Silver Peak Unity Edge Connect XS (FW-7551A-SV1) - As New

Sale price$395.00
Quantity:

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Technical Specifications

Capacity
WAN Bandwidth Capacity (all features + encryption) 2 to 200 Mbps
Simultaneous Connections 256,000
Resiliency
Disk Drives Single
Power Supplies Single
Network I+I and N+I with VRRP or WCCP
RAM ECC Memory
MTBF 62,787 hours (7.16 years)
Security
Disk Encryption 128-bit AES
Network Encryption IPSec (256-bit AES)
Connectivity
LAN/WAN Ethernet 4 x 10/100/1000 LAN/WAN (2 LAN / 2 WAN)
Management 2 x 10/100/1000; RJ45 serial port
Deployment
In-Line Router Mode In-Line as next-hop gateway between L2 switch and WAN router or Broadband Internet modem for
Zero Touch Provisioning
In-Line Bridge Mode In-line between L2 switch and WAN router with fail-to-wire in case of failure
Out-of-Path (Router) Mode Attached to WAN router out-of-path with PBR redirection, WCCP, and VRRP
Power
Requirement 100-240VAC / 50-60Hz / 23W / 78.5BTU
Power Supplies Single 23W/78.5
Dimensions
Height 1.7 in (44 mm)
Width 9.4 in (240 m)
Depth 6.5 in (166 mm)
Weight 3.0 lbs (1.4 kg)
Regulatory
EMC FCC Part 15 Class A, EN 55022 Class A, VCCI Class A, En 61000-3-2/3-3, En 55024
Safety UL/cUL/60950, En 60950
